My Studio Setup

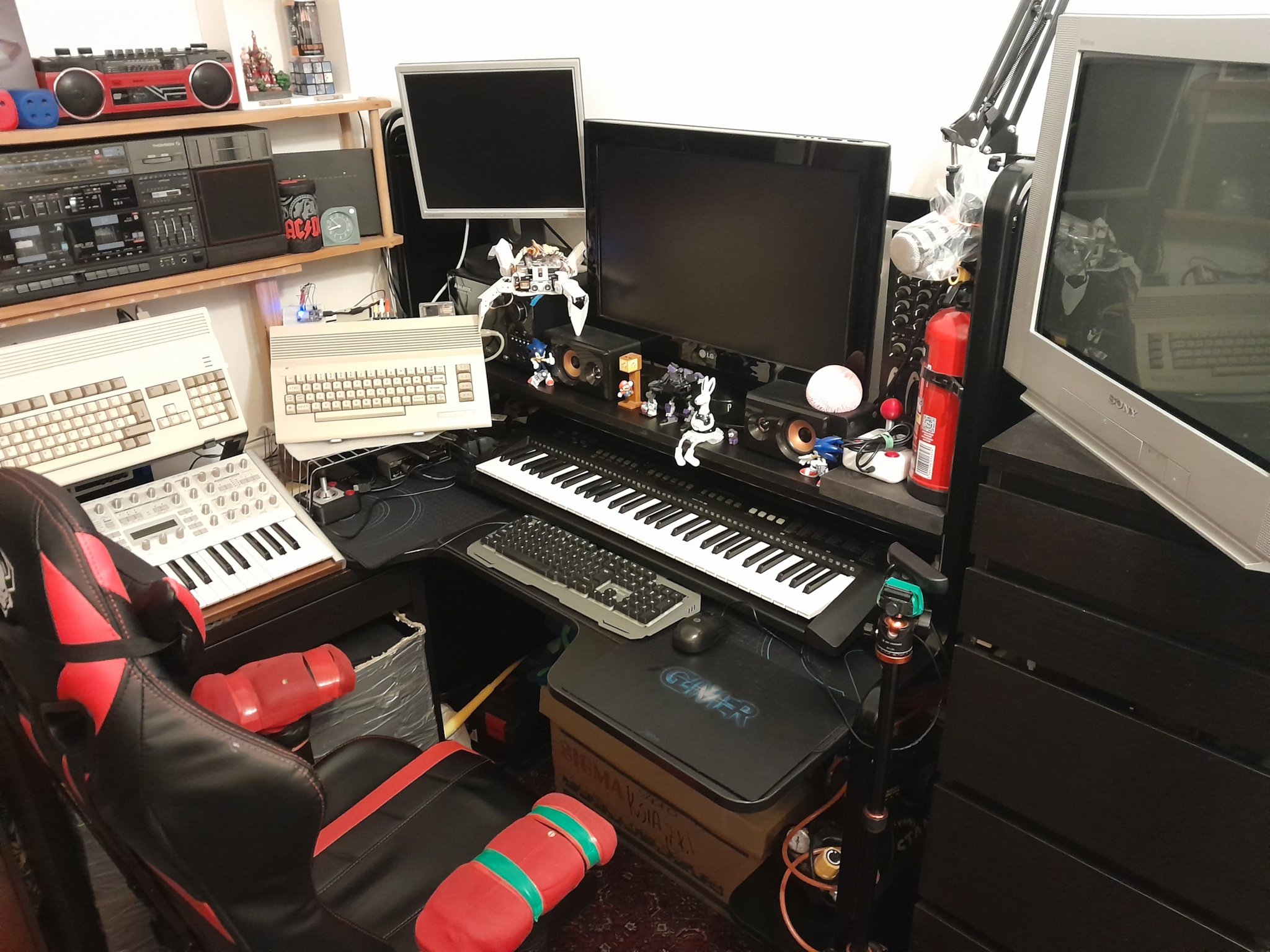

New configuration

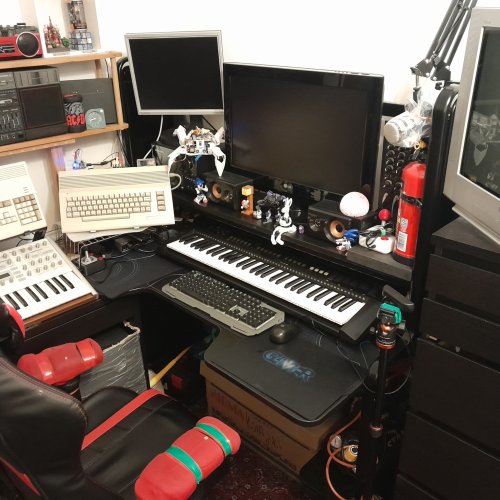

The new entire setup

OPEN THE IMAGE

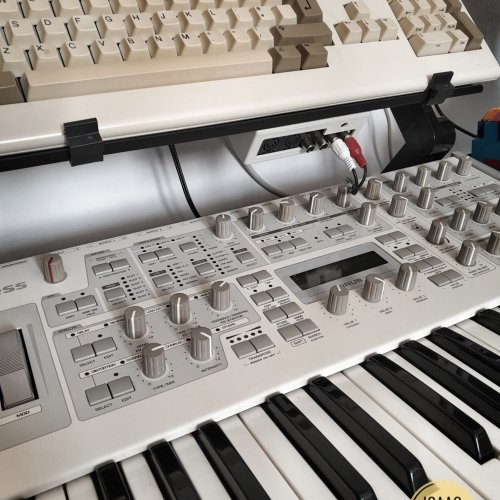

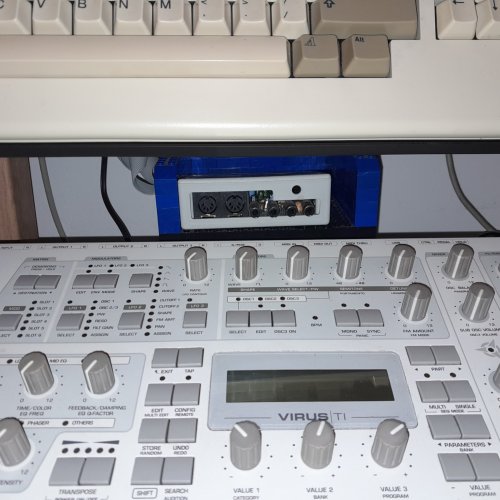

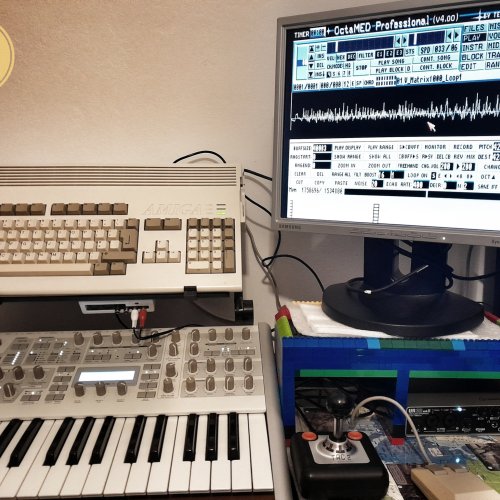

A new friend



The virus TI Polar next to the AMIGA 1200

OPEN THE IMAGE


Clarity 16 one Love!



The Clarity 16 ready to sample some sounds

OPEN THE IMAGE

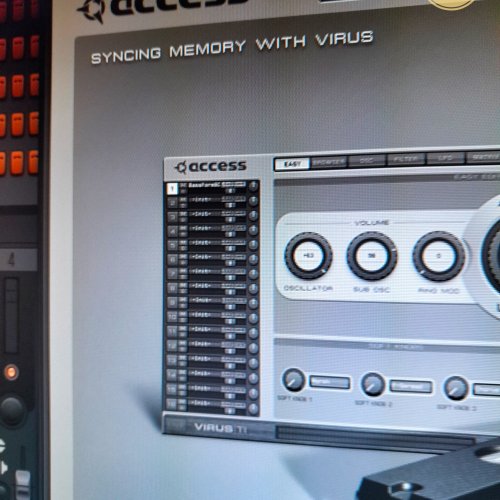

Sync VSTi total integration



Total DAW integration!

OPEN THE IMAGE

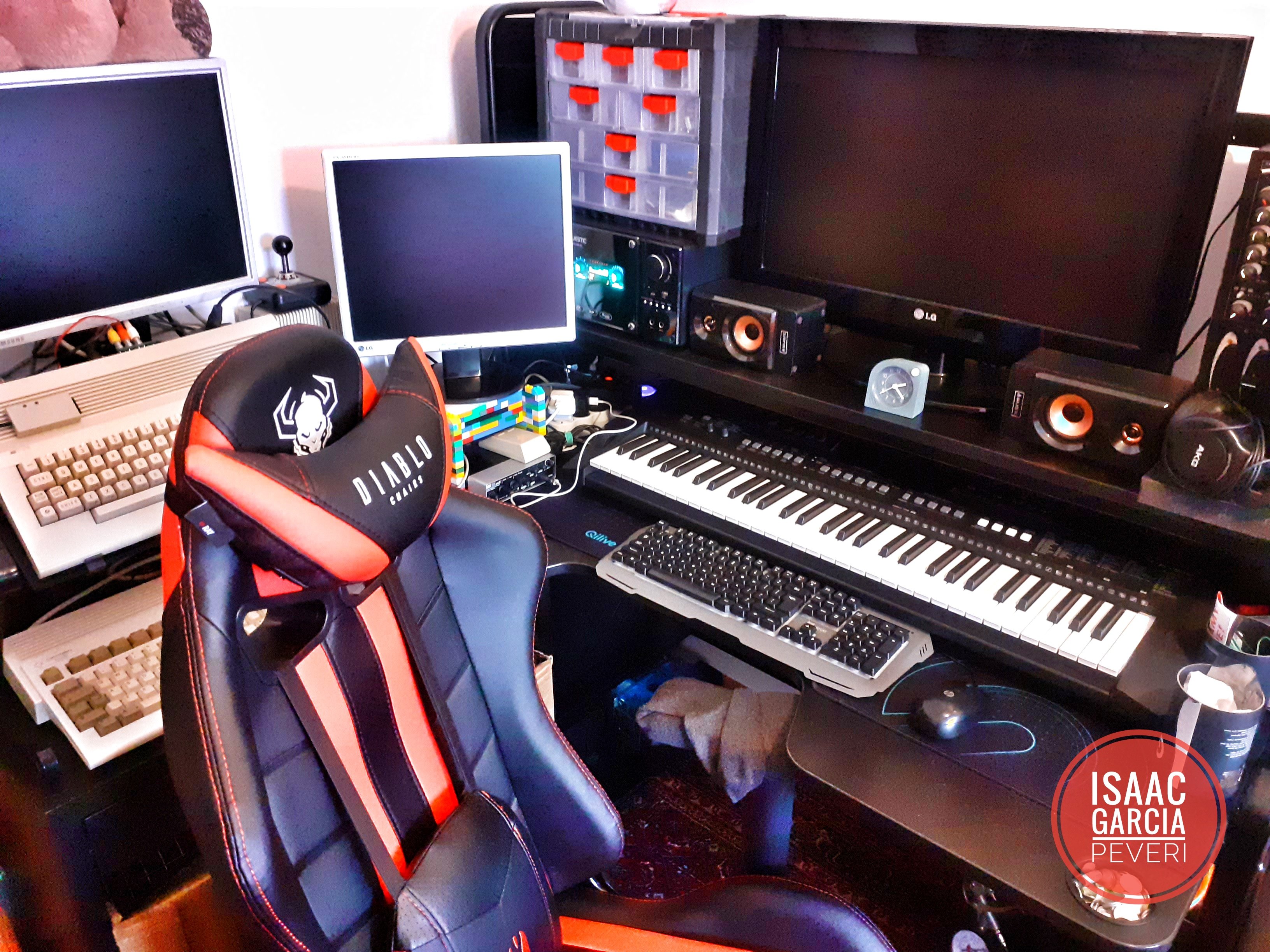

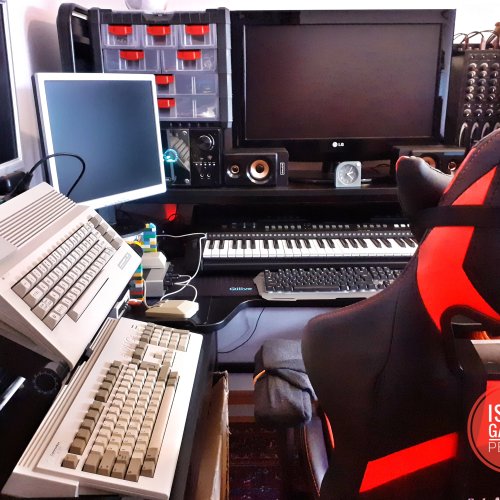

My entire studio setup 1



This is how actually my studio is. Some changes happened during the time, and I am planning to revisit it again soon...

OPEN THE IMAGE

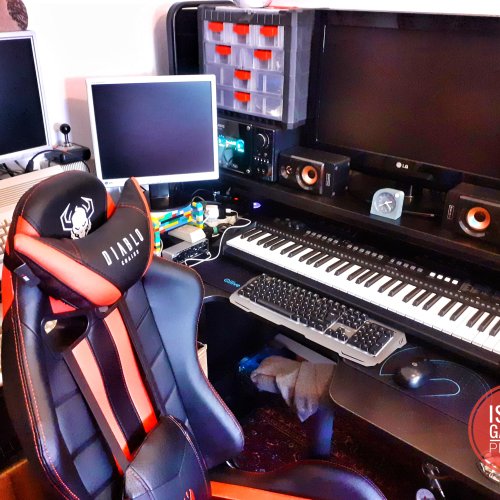

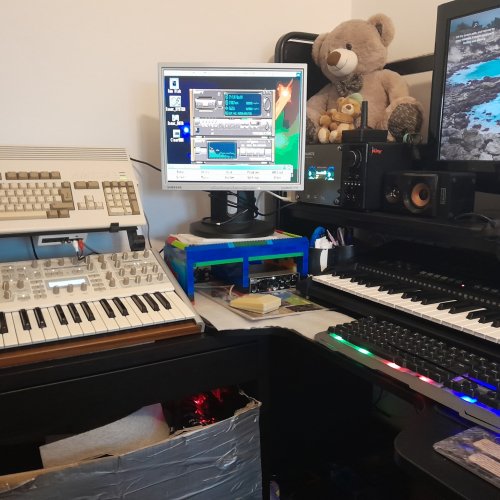

My entire studio setup 2



This is how actually my studio is. Some changes happened during the time, and I am planning to revisit it again soon...

OPEN THE IMAGE

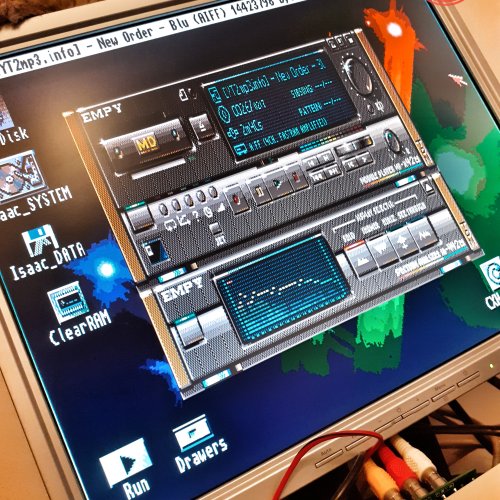

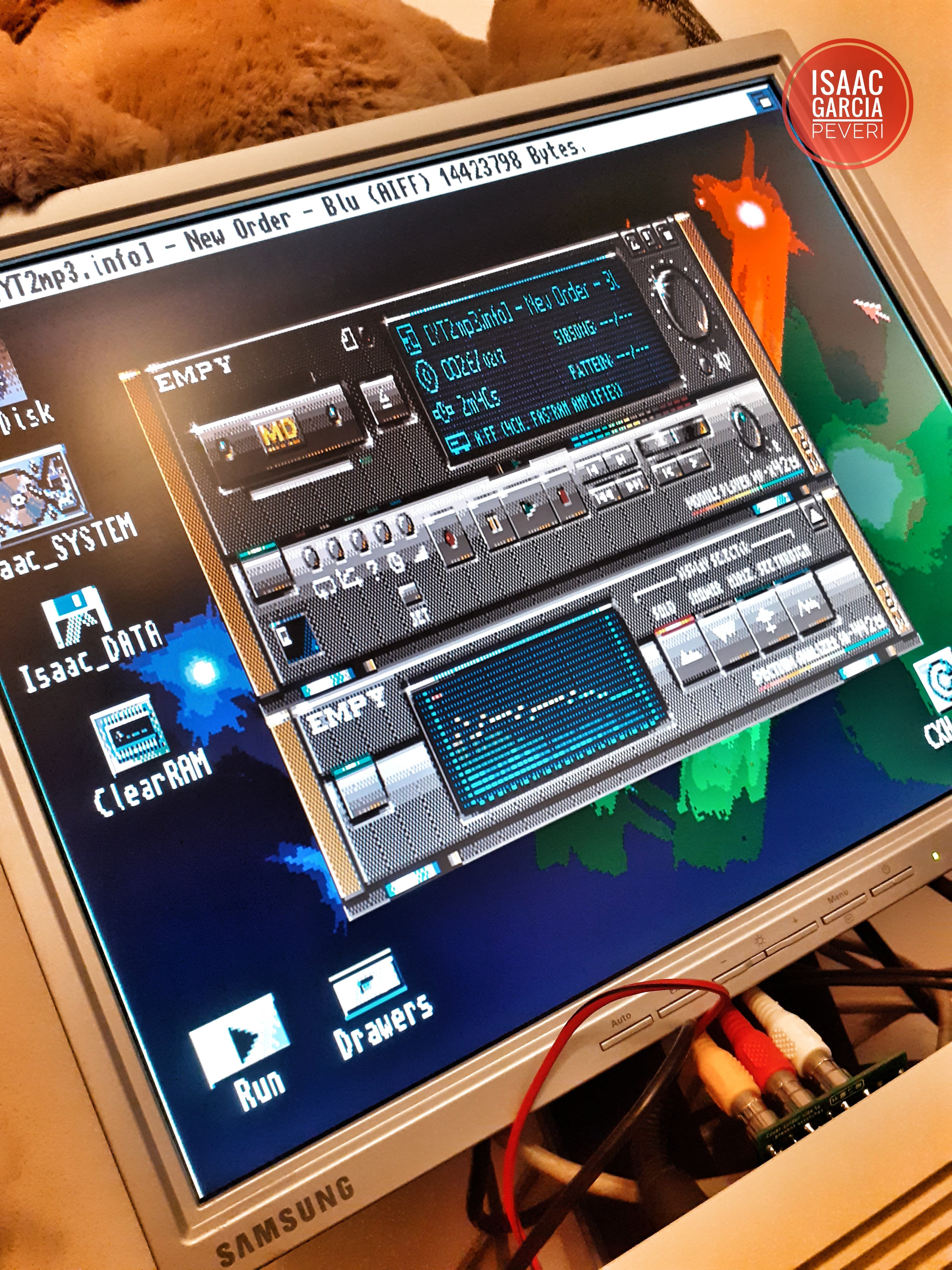

Listening music from the A1200



This is how actually I listen to some music on an A1200 with stock 020 cpu: to save space on your CF, you should save your files as .AIFF 8bit @16Khz. Believe me, sounds good (of course you can use 16bit amd 44Khz sampling rates, but you need a lot of space. An alternative: accelerate your Amiga bu putting a faster CPU or some modules like Vampire or PiStorm.

OPEN THE IMAGE

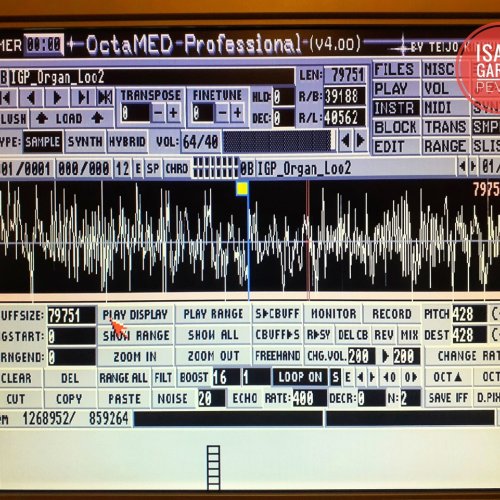

A sample



Sound designer like during my childhood :) This is how I was editing sounds. This is still today in modern Daws like FL Studio, Cubase, Audacity or Audition. The only difference: there was not "non destructive" mode during the 80's and 90's.

OPEN THE IMAGE


Sampling software



The softare of my Clarity sampler. I sample everything inside this software, and then I refine all my sounds inside Octamed. Unfortunately Clarity 16 is not compatible with Octamed: this means that Octamed can't see the device directly.

OPEN THE IMAGE

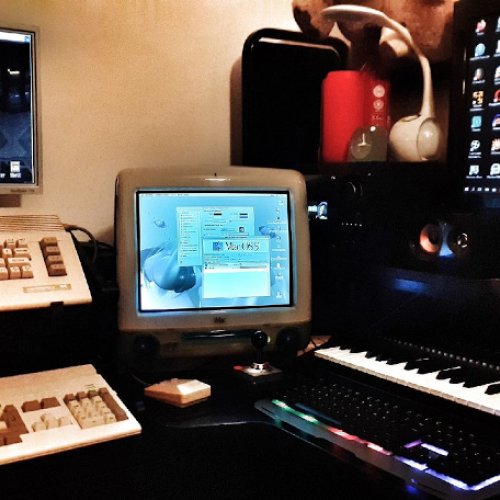

My entire studio setup



This is my previous setup. The iMac was removed (I have to recap it) to make space for a second monitor for the C64. The setup consists in a PC, Amiga, C64 and some external audio interfaces, a Yamaha keyboard and one mixer.

OPEN THE IMAGE


Amiga inside



There is a 4GB Compact Flash, used as Amiga hard drive instead of having a real HD. This solution is smarter, less prone to disaster recovery and faster than a real Hard Drive.

OPEN THE IMAGE

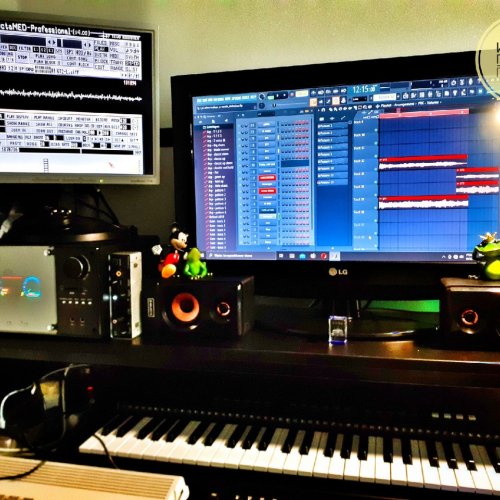

Fl Studio meets Amiga Octamed



My main daw is FL Studio on Windows, and many samples comes from it.

OPEN THE IMAGE

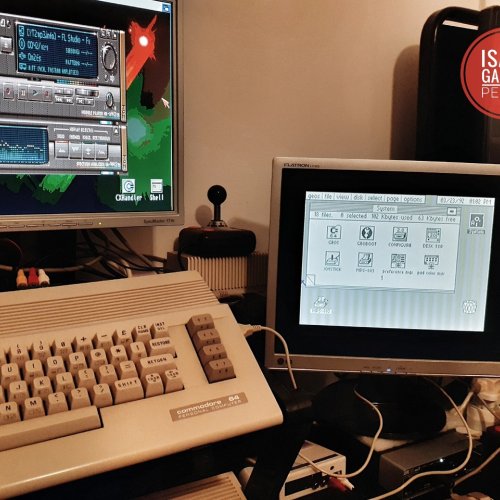

My C64c running GEOS



I use C64 because of it's analog synthesizer MOS SID, one of my favourites to synthesize powerful bass sounds. My main daw here is Mssiah Midi Sid, a powerful cartridge that host an entire musical operating system.

OPEN THE IMAGE

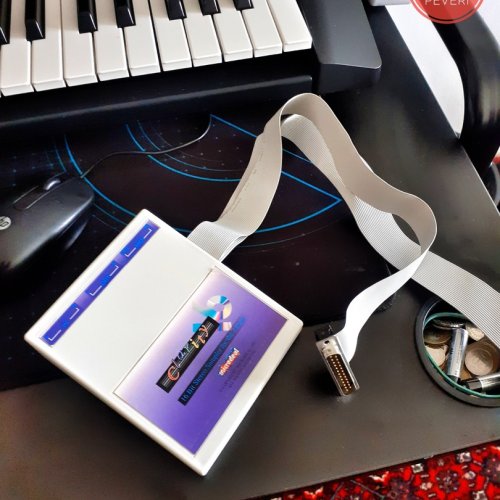

My amiga sampler: the Clarity 16



This is the interface to capture sounds into the Amiga. It's really powerful, and can sample up to higher 16 bit resolutions and frequencies. But the feature I love from this marvellous interface, is the ability to "monitor" the entering audio output through the Paula Chip. This interface connects to the Amiga via both Serial and Parallel ports, has one stereo output (yes, can playback sounds!), one stereo audio input, and integrated MIDI interface (1 x Midi in and 1 x Midi Out).

OPEN THE IMAGE


Sound capure and audio I/O



The ur22 MKII is my main audio interface, it's positioned next to the Clarity 16. Like the Clarity one, also this powerful audio interface has MIDI in / out capabilities, and can sample/reproduce audio up to 24bit @192Khz. Sorry for the C64 display support. I don't have monochrome legos :XD"

OPEN THE IMAGE
